Default AFR heads...Autometer mech Water temp gauge, sensor too long/won't fit

I'm a little stumped as to what to do here..

Bought brand new Autometer Ultra lite 2 1/16 mechanical water temp gauge..

AFR 210 CC heads.

The sensor that inserts into the cylinder head is long enough to where it won't even allow the threads to start to engage.
Can I grind down that sender or is there anyway I could "shorten" it?

Thank you,

Donnie
__________________
68 Camaro - 580 HP 412 CI, TH350, full manual, 3500 stall, 3.73 eaton posi, 17 inch Intro's. Jet black. Lowered.
Reply With Quote
Sponsored Links
Advertisement

  #2
Old Apr 8th, 12, 04:44 AM
mark191 mark191 is offline
Senior Tech

mark

Join Date: Feb 2009
Location: N.Y.
Posts: 502
Default Re: AFR heads...Autometer mech Water temp gauge, sensor too long/won't

Maybe you can just put the sender in the intake manifold and plug the port in the head
__________________
68 originally ss (straight six) 406,Afr210,Bullet solid roller,rpm airgap,QF750,th400,3.73 Eaton posi.11.10@121.51
Reply With Quote
  #3
Old Apr 8th, 12, 05:19 AM
Everett#2390's Avatar
Everett#2390 Everett#2390 is online now
Moderator

<Jake 68's Rule

Join Date: Sep 2000
Location: Va Beach VA
Posts: 27,112
Default Re: AFR heads...Autometer mech Water temp gauge, sensor too long/won't

One of two problems with a mechanical temp gauge, the sensor length.
How long is the sensor?
The other problem with a mechanical gauge is pegging the gauge when the engine overheats tremendously, strips the gears - replace gauge.
__________________
Give a man a rescued dog for the health of his soul.
'With enough thrust, pigs can fly.' Other Stuff
Reply With Quote
  #4
Old Apr 8th, 12, 05:42 AM
Bad67355 Bad67355 is online now
Senior Tech

Mike

Join Date: Aug 2008
Location: Newark Delaware
Posts: 410
Default Re: AFR heads...Autometer mech Water temp gauge, sensor too long/won't

Quote:
Originally Posted by 1968camaro123 View Post
I'm a little stumped as to what to do here..

Bought brand new Autometer Ultra lite 2 1/16 mechanical water temp gauge..

AFR 210 CC heads.

The sensor that inserts into the cylinder head is long enough to where it won't even allow the threads to start to engage.
Can I grind down that sender or is there anyway I could "shorten" it?

Thank you,


Donnie

I have the same guage in Dart cylinder heads there is an adapter fitting that came with mine that you screw in the head then sender screws into the adapter.
__________________
http://i264.photobucket.com/albums/i...acing006-1.jpg

67 RS 355sbc 11.76et @ 115mph 1.67 60'
Reply With Quote
  #5
Old Apr 8th, 12, 11:07 AM
1968camaro123 1968camaro123 is offline
Senior Tech

Don

Join Date: Apr 2001
Location: Redding, CA, 96003
Posts: 1,397
Default

The sensor is about an inch and half long where it protrudes out of the threaded fitting itself.

I really don't want to run this in the intake because I'd rather know the temp at the head and the line will
Look like crap routed to the intake.

The GAUGE came with a fitting that the sender fitting can be screwed into but it's too large of a thread diameter for the AFRs.
This has me thinking though now that you said that about the dart heads that maybe there is a fitting that can be screwed into the cylinder head itself that will keep the threads the same but just move it out wards/make it thread/tighten up sooner?

Donnie
__________________
68 Camaro - 580 HP 412 CI, TH350, full manual, 3500 stall, 3.73 eaton posi, 17 inch Intro's. Jet black. Lowered.
Reply With Quote
  #6
Old Apr 8th, 12, 11:17 AM
Everett#2390's Avatar
Everett#2390 Everett#2390 is online now
Moderator

<Jake 68's Rule

Join Date: Sep 2000
Location: Va Beach VA
Posts: 27,112
Default Re: AFR heads...Autometer mech Water temp gauge, sensor too long/won't

I believe
__________________
Give a man a rescued dog for the health of his soul.
'With enough thrust, pigs can fly.' Other Stuff
Reply With Quote
  #7
Old Apr 8th, 12, 11:23 AM
1968camaro123 1968camaro123 is offline
Senior Tech

Don

Join Date: Apr 2001
Location: Redding, CA, 96003
Posts: 1,397
Default

You seem to know your stuff pretty well Everett.
What would you do in my situation?
Is there another hidden spot thats still a good/safe spot to take the temp reading?
Should I try calling AFR tomorrow?
I just figured that AFR and autometer were 2 pretty good brands..that someone had either ran into this or figured it out before :/

DZ
__________________
68 Camaro - 580 HP 412 CI, TH350, full manual, 3500 stall, 3.73 eaton posi, 17 inch Intro's. Jet black. Lowered.
Reply With Quote
  #8
Old Apr 8th, 12, 11:26 AM
DETONATOR69 DETONATOR69 is offline

Fred

Join Date: Jan 2012
Location: Scotts Valley, CA
Posts: 16
Default Re: AFR heads...Autometer mech Water temp gauge, sensor too long/won't

I wanted an electric temp idiot light and my mechanical temp gauge both in my big block way back when and I couldn't get the plug out of the passenger side head. I bought one of those replacement thermostat housings that has a threaded port for a smog device, that also worked for my mechanical fuel gauge sender. It was chrome and looked better than the steel pained thermostat housing I got rid of.
__________________
Fred - Scotts Valley, CA
DETONATOR - 1969 Camaro
Hugger Orange / Black - Pro Touring
LS1 - T56 - 4.20 Rear - 2" Drop - Mini Tubs
Chassisworks g-Machine Frame and g-Link/4-link
Coming Soon - in 2013
Reply With Quote
  #9
Old Apr 8th, 12, 01:28 PM
Everett#2390's Avatar
Everett#2390 Everett#2390 is online now
Moderator

<Jake 68's Rule

Join Date: Sep 2000
Location: Va Beach VA
Posts: 27,112
Default Re: AFR heads...Autometer mech Water temp gauge, sensor too long/won't

AFR & Autometer are two good brands. The problem is Autometer is old school, 1/2 inch pipe thread, and AFR is new school, 3/8 inch pipe thread and neither the twain shall meet.

Generally, the sensor bulb is enclosed with the tube and gauge and has a back-up nut, the two items are separate, the nut spins about the sensor bulb. The mentioned sensor bulb screws into an adapter and the sensor is held in place with the back-up nut sealing the bulb to the adapter and no leaks. Everything is tight.

I would check with Autometer seeing/asking if there is a machined adapter for the 3/8 inch pipe thread cyl head hole. ATM4737 has one fitting with it for this purpose, I think. You want the bulb into the coolant for reading coolant temp and not cyl head metal temp, as usually happens.

So, check with Autometer to see what they have available. The ID/interior is machined to provide a sealing sealing surface for the bulb making it leak free.
__________________
Give a man a rescued dog for the health of his soul.
'With enough thrust, pigs can fly.' Other Stuff
Reply With Quote
  #10
Old Apr 8th, 12, 02:19 PM
1968camaro123 1968camaro123 is offline
Senior Tech

Don

Join Date: Apr 2001
Location: Redding, CA, 96003
Posts: 1,397
Default Re: AFR heads...Autometer mech Water temp gauge, sensor too long/won't

Thank you, I'll call Autometer tomorrow and post back.

Glad to hear you say that cause I thought that the probe itself needed to be immersed in actual coolant as much as possible.

Take care,

Donnie
__________________
68 Camaro - 580 HP 412 CI, TH350, full manual, 3500 stall, 3.73 eaton posi, 17 inch Intro's. Jet black. Lowered.
Reply With Quote
  #11
Old Apr 8th, 12, 05:56 PM
Steiner Steiner is online now
Senior Tech

Steiner

Join Date: Mar 2009
Location: Lyman, SC
Posts: 7,497
Default Re: AFR heads...Autometer mech Water temp gauge, sensor too long/won't

You can run to the parts store and get one of the cheapest mechanical gauges they have on the shelf and it'll have a set of bushings in it, one of which will work with the AFR's. That's what I did, AutoMeter Sport Comp, same Bourdon tube setup. Can't remember what brand gauge I bought at the store but it was maybe $15 and still under the house somewhere.
__________________
'69 Camaro X11 Street Car
Dart 400 - AFR-195's - 224/224 HR - Powerjection III
TKO-600 - Moser 3.42 - Detroit Truetrac
538 lb-ft - 500 hp
www.cmengines.com
'69 Camaro X44 Beater - SFT 327 - M20 - Moser 4.10
'02 Z/28 vert - stock
Reply With Quote
  #12
Old Apr 8th, 12, 07:05 PM
Lonnie P's Avatar
Lonnie P Lonnie P is offline
Senior Tech

Lonnie

Join Date: Sep 2008
Location: Pittsburgh, pa
Posts: 429
Default Re: AFR heads...Autometer mech Water temp gauge, sensor too long/won't

Put it in the intake....

It is much easier to protect as it is away from the headers.
You can run the line between the intake & edge of valve cover, making it nearly invisible.
You only see a small loop where it comes up out of the intake.

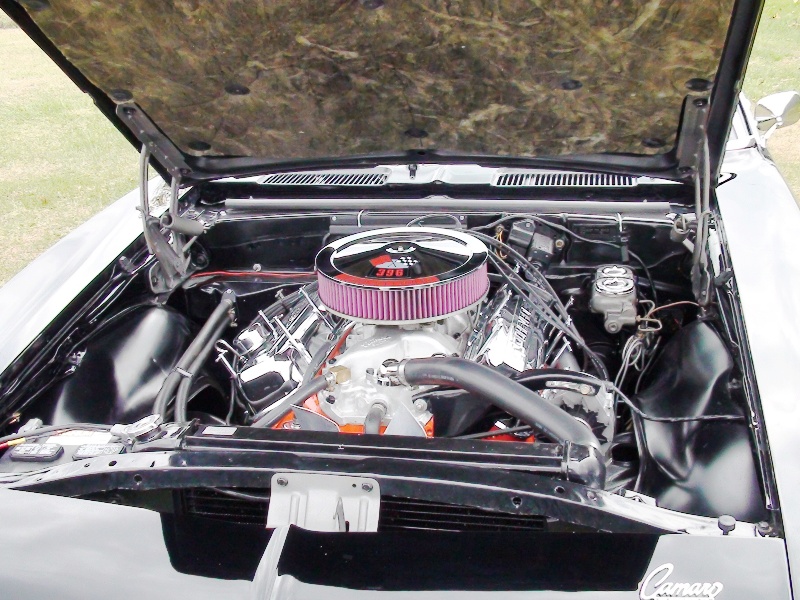

I do not have a better picture but here is one where you barely notice it.




Also the temp in the intake is the same temp the thermostat sees, so it is not like it is some random reading here.
Reply With Quote
  #13
Old Apr 8th, 12, 11:42 PM
1968camaro123 1968camaro123 is offline
Senior Tech

Don

Join Date: Apr 2001
Location: Redding, CA, 96003
Posts: 1,397
Default Re: AFR heads...Autometer mech Water temp gauge, sensor too long/won't

Steiner, once again...thank you!

I've bought a few sets of those cheapo 3 gauge packs over the years and always throw the little fittings into a pile. Just so happened to organize that little pile a few weeks ago and BAM there was the fitting I need (probably from one of those little gauge packs)

So that obstacle is now conquered and on to the next lol.

Thanks again,

Donnie
__________________
68 Camaro - 580 HP 412 CI, TH350, full manual, 3500 stall, 3.73 eaton posi, 17 inch Intro's. Jet black. Lowered.
Reply With Quote
  #14
Old Apr 9th, 12, 03:37 PM
L30 327 L30 327 is offline
Senior Tech

Eric

Join Date: Mar 2011
Location: Midwest U.S.A.
Posts: 463
Default Re: AFR heads...Autometer mech Water temp gauge, sensor too long/won't

Quote:
Originally Posted by lonnie p View Post
put it in the intake....

It is much easier to protect as it is away from the headers.
You can run the line between the intake & edge of valve cover, making it nearly invisible.
You only see a small loop where it comes up out of the intake.

I do not have a better picture but here is one where you barely notice it.




also the temp in the intake is the same temp the thermostat sees, so it is not like it is some random reading here.
x2
__________________
'69 Camaro, w/'67 L30 327 .030, L79 cam, 700DP, M20, 3.73 12 Bolt
Reply With Quote
