Question rear axle bumpers

What is the difference between the 67' rear axle bumpers and the 68-69.

67Camaro 396BB 750Holley, edlebrock performer,280isky,3.42 posi, turbo 350,stage 2 shift kit, 2800 stall, MSDready to run distributor, headers, 2.5"exhaust, Hotchkis(1.5"/2"drop).(orig.Deep water blue/light blue dlx inter, v8 column shift/bench seat)
johnny67 is offline
Sponsored Links
Advertisement

post #2 of 16 (permalink) Old Aug 17th, 06, 10:46 PM Thread Starter
Senior Tech
Johnny

Join Date: Jan 2006
Location: Vancouver, B.C., Canada
Posts: 716
Question Re: rear axle bumpers

Maybe I will rephrase my question. Why were the 68' rear axle bumpers design changed from the 67' style?

I'm wondering because I have changed from a 67 mono leaf springs and rear to 68' multi leaf springs and rear.

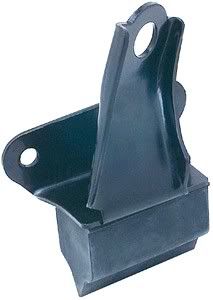

68'
67'

67Camaro 396BB 750Holley, edlebrock performer,280isky,3.42 posi, turbo 350,stage 2 shift kit, 2800 stall, MSDready to run distributor, headers, 2.5"exhaust, Hotchkis(1.5"/2"drop).(orig.Deep water blue/light blue dlx inter, v8 column shift/bench seat)

Last edited by johnny67; Aug 17th, 06 at 11:15 PM.
johnny67 is offline
post #3 of 16 (permalink) Old Aug 18th, 06, 03:21 AM
Super Moderator
Bess-68's rule

Everett#2390's Avatar

Join Date: Sep 2000
Location: Va Beach VA
Posts: 31,584
Garage
Re: rear axle bumpers

The bumpers are to prevent the axle from crushing the frame rails when the axle bottoms out.

The design change was to change the vector pattern. The 67 pad will crush the rail, the 68 transfers the load to the vertical wall of the rail and not crush it. Compare the bolt hole location in the two pictures.

Give a man a rescued dog for the health of both their souls. May 2017 ROTM Winner - Thank you!
'
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
CUBS - 2016 World Series Champions - maybe this year, 2019 ...
Everett#2390 is offline

post #4 of 16 (permalink) Old Aug 18th, 06, 10:21 AM Thread Starter
Senior Tech
Johnny

Join Date: Jan 2006
Location: Vancouver, B.C., Canada
Posts: 716
Re: rear axle bumpers

thanks for the reply Everett I think I will get the 68-69 bumpers installed.

Can anyone post a 68-69' pic so I can know where to install the bumper on my 67'.
Either a page from the assembly manual or a pic of your car would be great.

67Camaro 396BB 750Holley, edlebrock performer,280isky,3.42 posi, turbo 350,stage 2 shift kit, 2800 stall, MSDready to run distributor, headers, 2.5"exhaust, Hotchkis(1.5"/2"drop).(orig.Deep water blue/light blue dlx inter, v8 column shift/bench seat)
johnny67 is offline
post #5 of 16 (permalink) Old Aug 20th, 06, 10:21 PM Thread Starter
Senior Tech
Johnny

Join Date: Jan 2006
Location: Vancouver, B.C., Canada
Posts: 716
Re: rear axle bumpers

I will rephrase my question. Does the 68-69 axle bumpers go in the same location as the 67'?

67Camaro 396BB 750Holley, edlebrock performer,280isky,3.42 posi, turbo 350,stage 2 shift kit, 2800 stall, MSDready to run distributor, headers, 2.5"exhaust, Hotchkis(1.5"/2"drop).(orig.Deep water blue/light blue dlx inter, v8 column shift/bench seat)
johnny67 is offline
post #6 of 16 (permalink) Old Aug 21st, 06, 03:50 AM
Super Moderator
Bess-68's rule

Everett#2390's Avatar

Join Date: Sep 2000
Location: Va Beach VA
Posts: 31,584
Garage
Re: rear axle bumpers

They do end up in the same location, basically.

Give a man a rescued dog for the health of both their souls. May 2017 ROTM Winner - Thank you!
'
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
CUBS - 2016 World Series Champions - maybe this year, 2019 ...
Everett#2390 is offline
post #7 of 16 (permalink) Old Nov 11th, 07, 07:27 AM
Gold Lifetime Member
Dave

Join Date: Mar 2006
Location: Lincoln County, Missouri
Posts: 897
Re: rear axle bumpers

I'm working on my rear suspension. Here are a couple pictures of a 68. One with the bumper installed, one with it missing that shows the mounting holes.

Click image for larger version

Name:	SANY0051.JPG
Views:	79
Size:	93.8 KB
ID:	4749
Click image for larger version

Name:	SANY0052.JPG
Views:	69
Size:	77.5 KB
ID:	4750

Dave

all gave some
MY SON GAVE ALL


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
68DaveV is offline
post #8 of 16 (permalink) Old Nov 11th, 07, 08:56 AM

Join Date: Jan 2005
Posts: 26
Re: rear axle bumpers

If you have a 67, 68-9 bumpers won't fit unless you move the shocks to staggered. 67 had them both on the same side of the axle.
HILROD is offline
post #9 of 16 (permalink) Old Nov 11th, 07, 10:10 AM Thread Starter
Senior Tech
Johnny

Join Date: Jan 2006
Location: Vancouver, B.C., Canada
Posts: 716
Re: rear axle bumpers

Hey, it only took 15 months to get that pic put up lol.

I took the 68' bumpers back and bought the 67's. I think because I wasn't getting alot of help on the subject,(everyone thought I must have been nuts) plus it was just way easier. I guess no one has done it before, and how many times will you be going 4x4ing to actually get the axle to hit the rail.

67Camaro 396BB 750Holley, edlebrock performer,280isky,3.42 posi, turbo 350,stage 2 shift kit, 2800 stall, MSDready to run distributor, headers, 2.5"exhaust, Hotchkis(1.5"/2"drop).(orig.Deep water blue/light blue dlx inter, v8 column shift/bench seat)
johnny67 is offline
post #10 of 16 (permalink) Old Nov 11th, 07, 10:14 AM Thread Starter
Senior Tech
Johnny

Join Date: Jan 2006
Location: Vancouver, B.C., Canada
Posts: 716
Re: rear axle bumpers

Quote:
Originally Posted by HILROD View Post
If you have a 67, 68-9 bumpers won't fit unless you move the shocks to staggered. 67 had them both on the same side of the axle.
Hilrod,
If you could explain that a little more it would be appreciated.

67Camaro 396BB 750Holley, edlebrock performer,280isky,3.42 posi, turbo 350,stage 2 shift kit, 2800 stall, MSDready to run distributor, headers, 2.5"exhaust, Hotchkis(1.5"/2"drop).(orig.Deep water blue/light blue dlx inter, v8 column shift/bench seat)
johnny67 is offline
post #11 of 16 (permalink) Old Nov 12th, 07, 08:32 AM
Gold Lifetime Member
Bob

Join Date: Jan 2006
Location: East Earl PA
Posts: 234
Re: rear axle bumpers

[QUOTE=68DaveV;884609]I'm working on my rear suspension. Here are a couple pictures of a 68. One with the bumper installed, one with it missing that shows the mounting holes.

Dave

Not to steal the post, but....

I bought a used right side bumper bracket and I'm not sure it if was altered or not. On mine, the rearward vertical edge is about 3/8 of an inch. There really is no forward vertical edge. That's what your photo appears to show. Is that correct? My question regards the forward edge only.

Thanks

Bob
BOB68396/350 is offline
post #12 of 16 (permalink) Old Nov 12th, 07, 11:08 AM
Banned

Join Date: Apr 2000
Location: Columbia, MO USA
Posts: 21,341
Re: rear axle bumpers

Johnny,

The '67's mount horizonally flat and can crush the unibody's what I call the rearend's S/F sheetmetal.

Whereas the '68/'69's mount the rubber stop to a vertical L-shaped bracket w/ a channel that sandwiches the S/F sheetmetal and also mounts one bolt up higher to keep from damaging these thin S/F sheetmetal panels, imho is all....

pdq67



pdq67 is offline
post #13 of 16 (permalink) Old Nov 12th, 07, 01:37 PM
Gold Lifetime Member
Dave

Join Date: Mar 2006
Location: Lincoln County, Missouri
Posts: 897
Re: rear axle bumpers

Bob,

I'm not sure I understand your question. The installed bracket I showed is on the left side. I have no reason to think it's not original, or even that it's ever been off the car. If a different angle picture would help let me know...just takes a second to snap a photo.

Dave

all gave some
MY SON GAVE ALL


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
68DaveV is offline
post #14 of 16 (permalink) Old Nov 13th, 07, 07:01 AM
Gold Lifetime Member
Bob

Join Date: Jan 2006
Location: East Earl PA
Posts: 234
Re: rear axle bumpers

Dave

Can you snap a picture of the RIGHT side from the front and rear as it would mount on the car?

Thanks

Bob
BOB68396/350 is offline
post #15 of 16 (permalink) Old Nov 13th, 07, 07:31 AM
Gold Lifetime Member
Dave

Join Date: Mar 2006
Location: Lincoln County, Missouri
Posts: 897
Re: rear axle bumpers

I don't have a bumper on the right side, so you won't see much there.

Some have mentioned that the 68/69 sandwich the frame. That not correct. It mounts to the outside of the frame rail.

Here is my right side from the rear/bottom. I put arrows to the mounting holes:

Click image for larger version

Name:	SANY0054.JPG
Views:	51
Size:	107.6 KB
ID:	4774

This is the left side from the rear:

Click image for larger version

Name:	SANY0055.JPG
Views:	58
Size:	133.4 KB
ID:	4775

And the left from the front:

Click image for larger version

Name:	SANY0056.JPG
Views:	52
Size:	111.8 KB
ID:	4776

Dave

all gave some
MY SON GAVE ALL


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
68DaveV is offline
