I asked this over in the "builds" thread but figured this would be a better place for it.

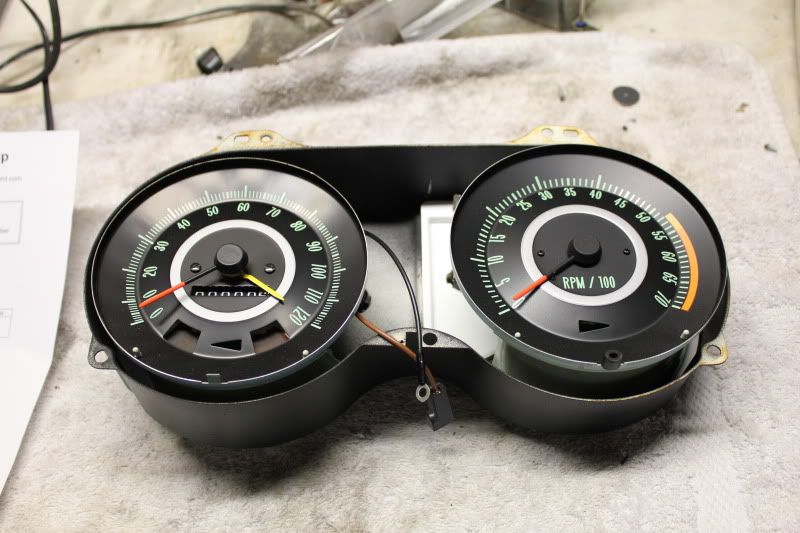

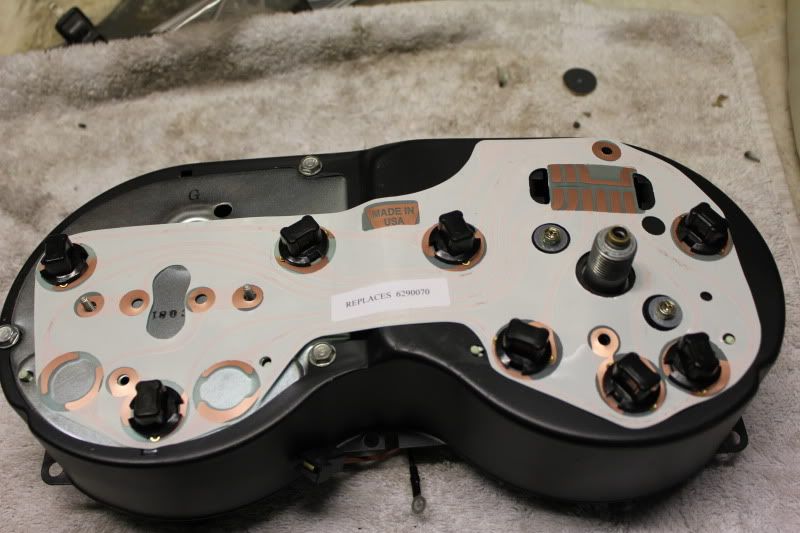

My car was originally a speedo/fuel gauge instrument cluster setup, and I am installing a tachometer (OER) and console with gauges (OEM). I cleaned up the housing and have installed a new speedo, tach, PCB, carrier, lenses, bulb sockets, and bulbs. There are two leads that I am not sure what they are for nor how they route through the back (or front, or sides) of the cluster. Any help would be most appreciated. Here are some pics:

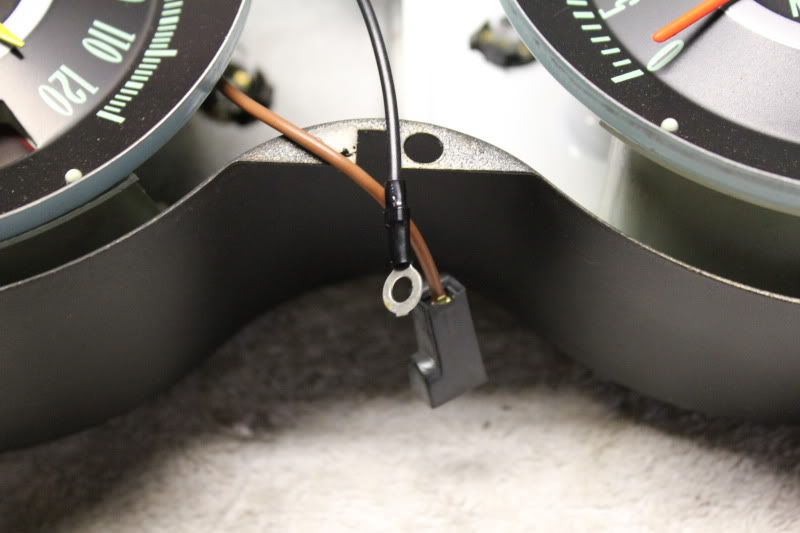

Leads in question:






Thanks!


·
Premium Member
Joined
·
926 Posts
What does the other ends attach to? Can you trace them? If they go into one of the instruments, that could be a clue. If they go to the circuit board, you can ohm it out and go from there.


·
Admin/Super Moderator
Joined
·
12,511 Posts
Speed warning buzzer lead and the ground for it I think.
There will be a port for the cable to attach from below the dash so you can move the yellow pointer to the location for the warning buzzer to buzz. Check the AIM.
